BAE Systems

Compact IR camera for security.

British Aerospace Engineering (BAE) required a low cost infrared camera capable of enduring extreme conditions while delivering high quality imaging for surveillance missions. The device needed multisource power support, submersible, and ergonomic adaptability.

Rugged reliability meets covert precision.

BAE Systems Military Man product design

RKS applied its Psycho‑Aesthetics® methodology to uncover emotional and functional needs of law enforcement users. Through on site interviews and field observations, the team identified critical factors like ease of use, operator confidence, and situational adaptability under stress. The project mapped to the enriched quadrant in the PA Map, balancing performance and emotional reassurance.

Research Insights & Discovery

KEY OUTPUTS

Emotional journey mapping

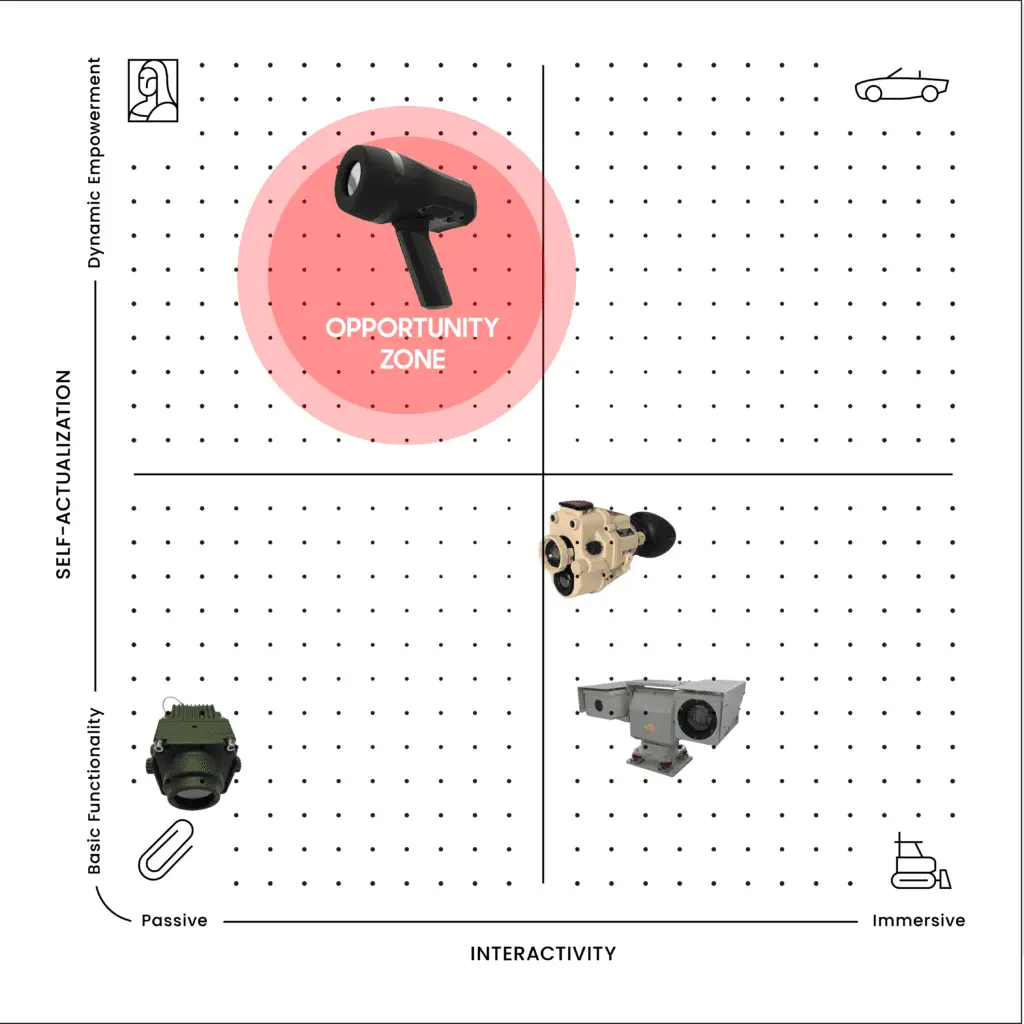

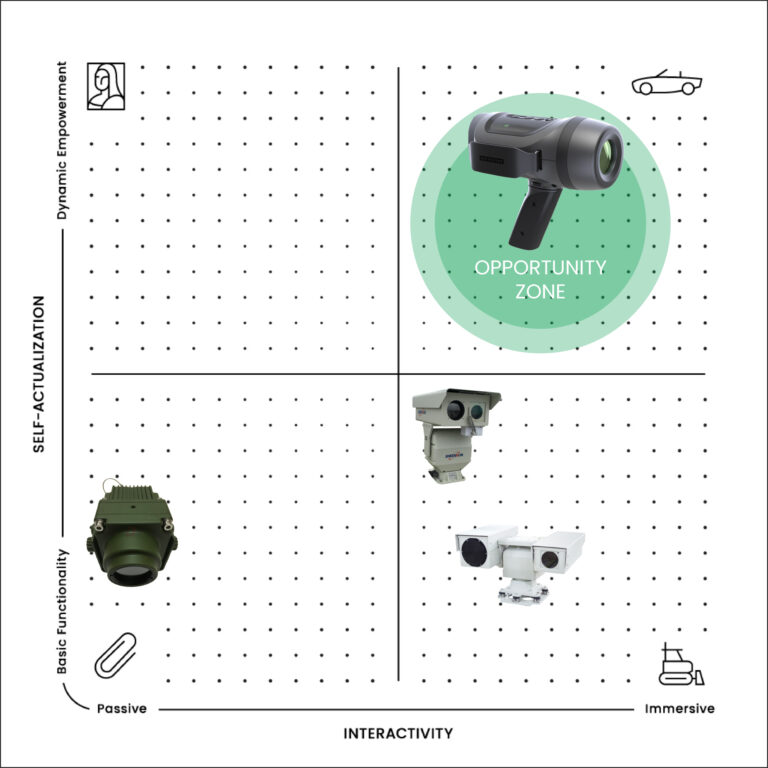

Psycho-Aesthetics® 2.0 Map
Opportunity Areas & Design Criteria

How We Used Psycho-Aesthetics™ to Identify Unique Opportunities in the Project.

Using our proprietary Psycho-Aesthetics® 2.0 framework, we conducted in-depth interviews and ethnographic observation in diverse lab settings. We identified key emotional and usability pain points — such as intimidation with complex interfaces, workspace clutter, and trust in precision. These insights guided both the form and interface strategy, ensuring approachability and confidence in operation.

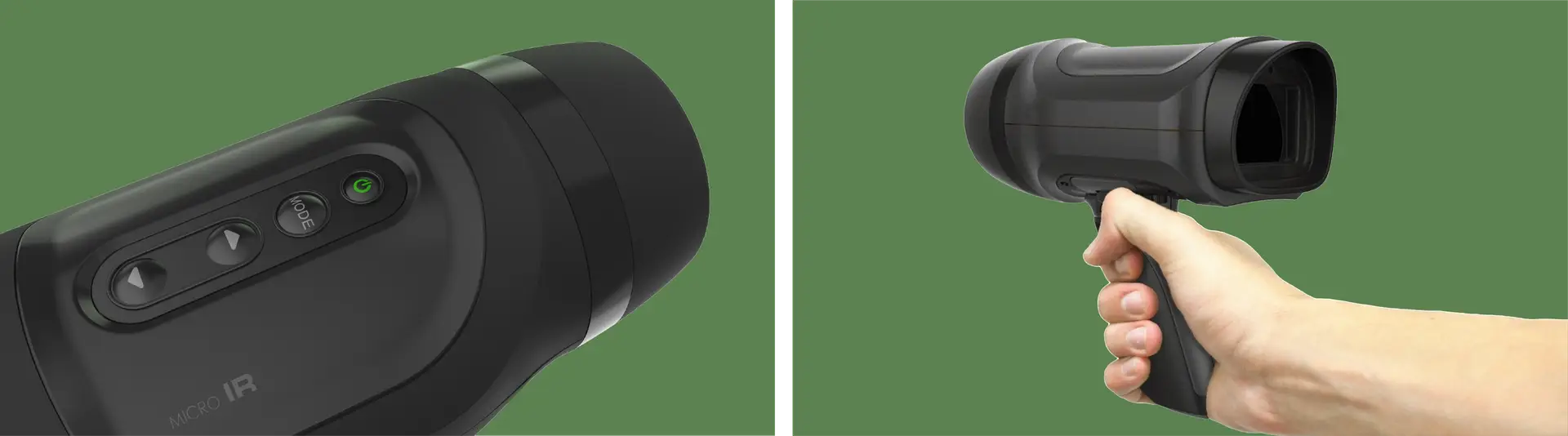

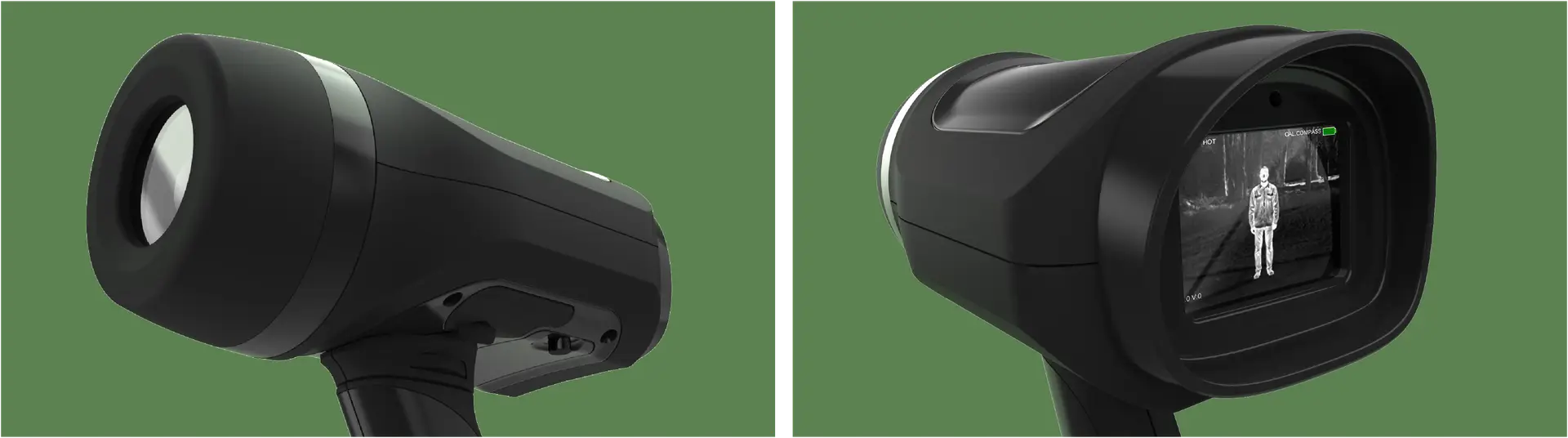

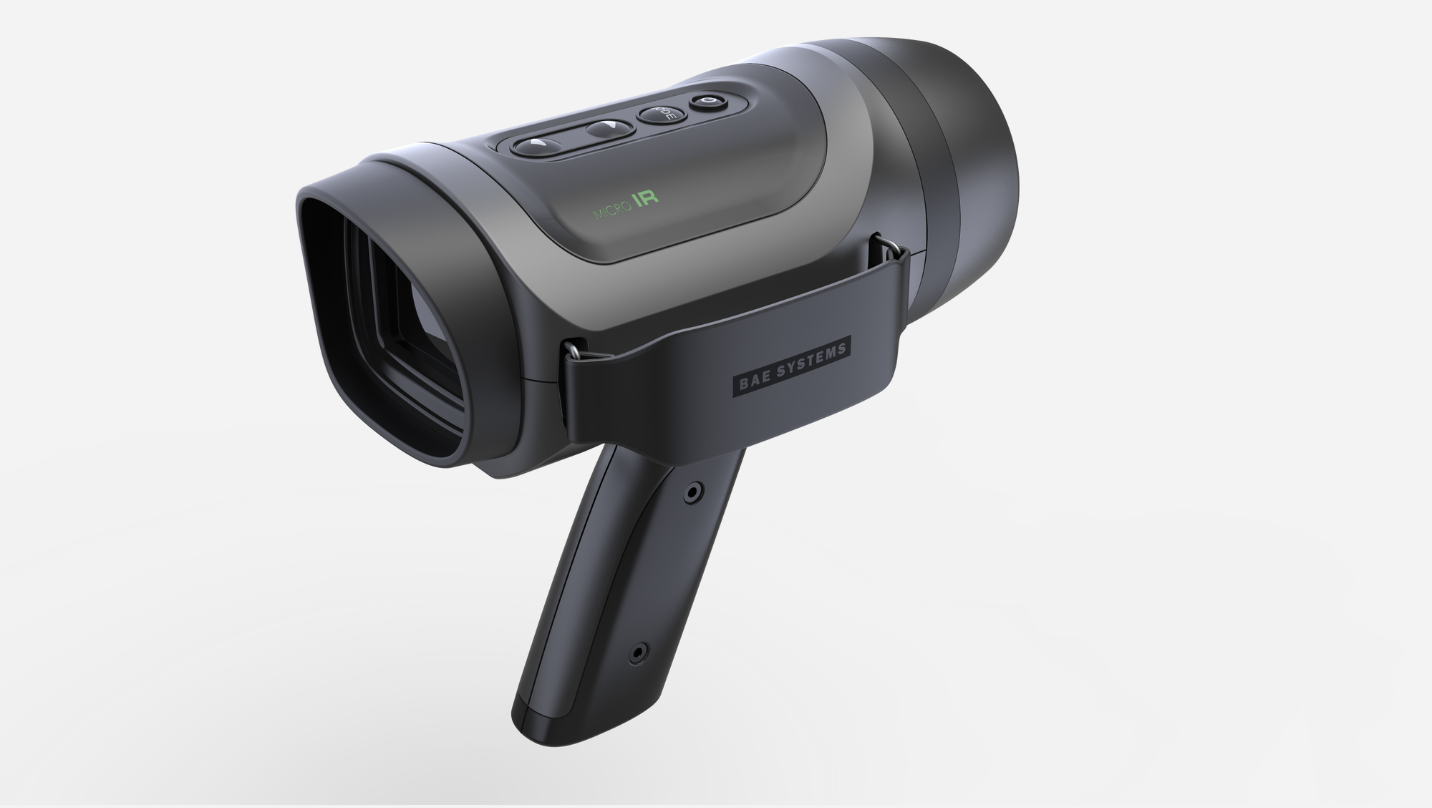

A high impact polycarbonate housing with TPE over mold ensured drop and immersion resistance. RKS designed a versatile form supporting multiple configurations: handheld grip, pole mount, or tactical use with eyecup and optics. The articulating handle and removable eyecup enabled flexible use in variable lighting and deployment scenarios.

Industrial Design Concept Development

KEY OUTPUTS

CAD models with multi mode grip geometries
CMF Strategy
Configurable handle and eyecup modules

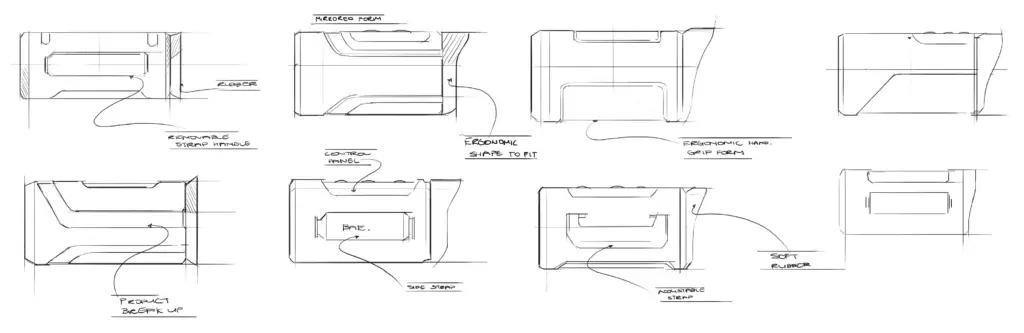

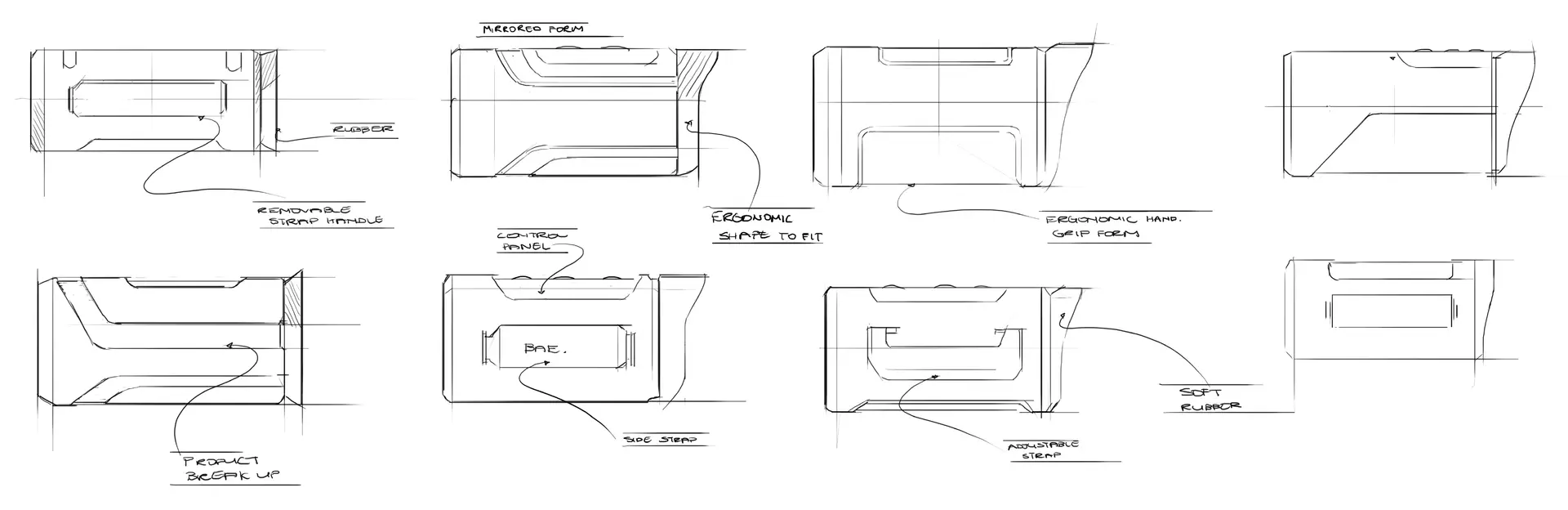

BAE SystemsProduct Design Sketches
BAE Systems Attributes Explained

Engineers tested for durability, drop resistance from 3 ft onto concrete and immersion to 3 ft for up to 30 minutes. The design accommodated different power sources (battery, wired, vehicle mounts) and provided seamless integration into varied field setups. Functional prototypes validated ruggedness and usability in real world scenarios.

Engineering Validation

KEY OUTPUTS

Rugged prototypes
Rapid prototyping for handle and eyecup
Validation Reports

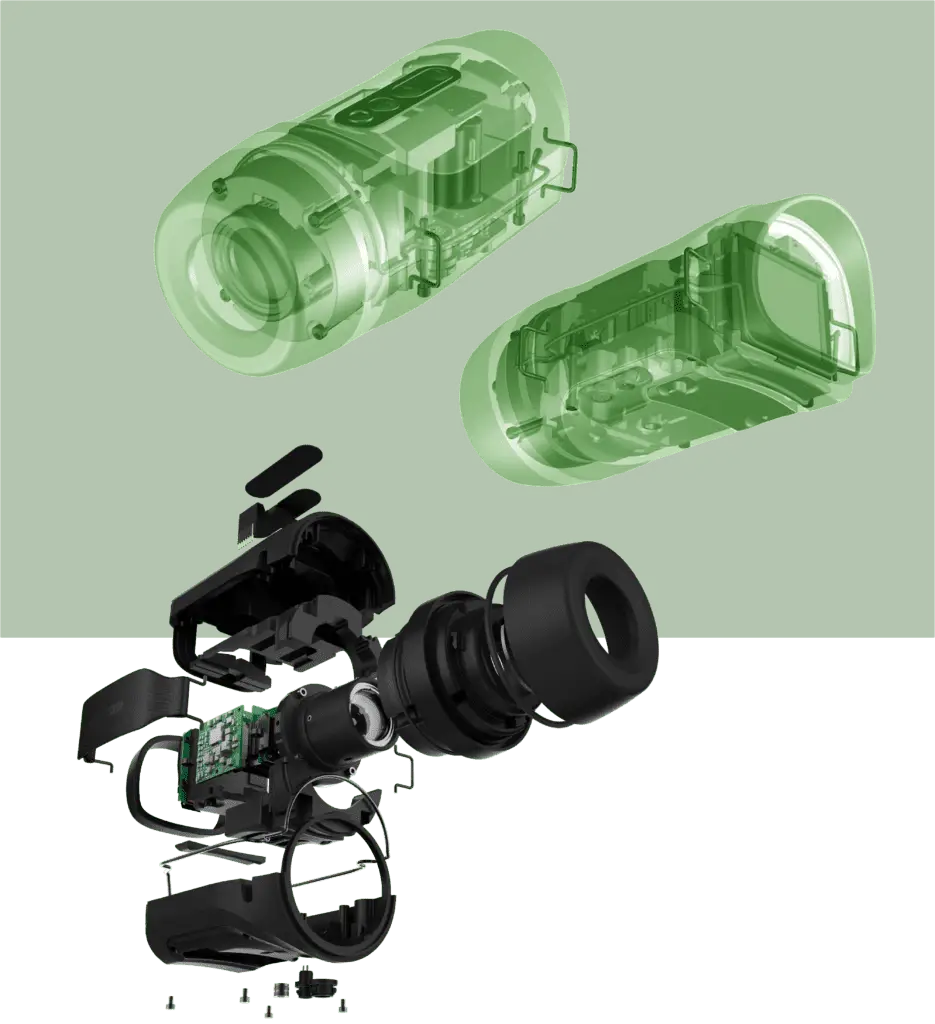

BAE Systems Product Design Details
BAE Systems Product Design Details

Final industrial design and tested prototype delivered to BAE Systems for production ready deployment in law enforcement and surveillance missions

Key Outcomes and Results

Key Accomplishments

Operators report heightened trust in gear under pressure
Configurable for multiple use cases
Appreciated by operators for ergonomic

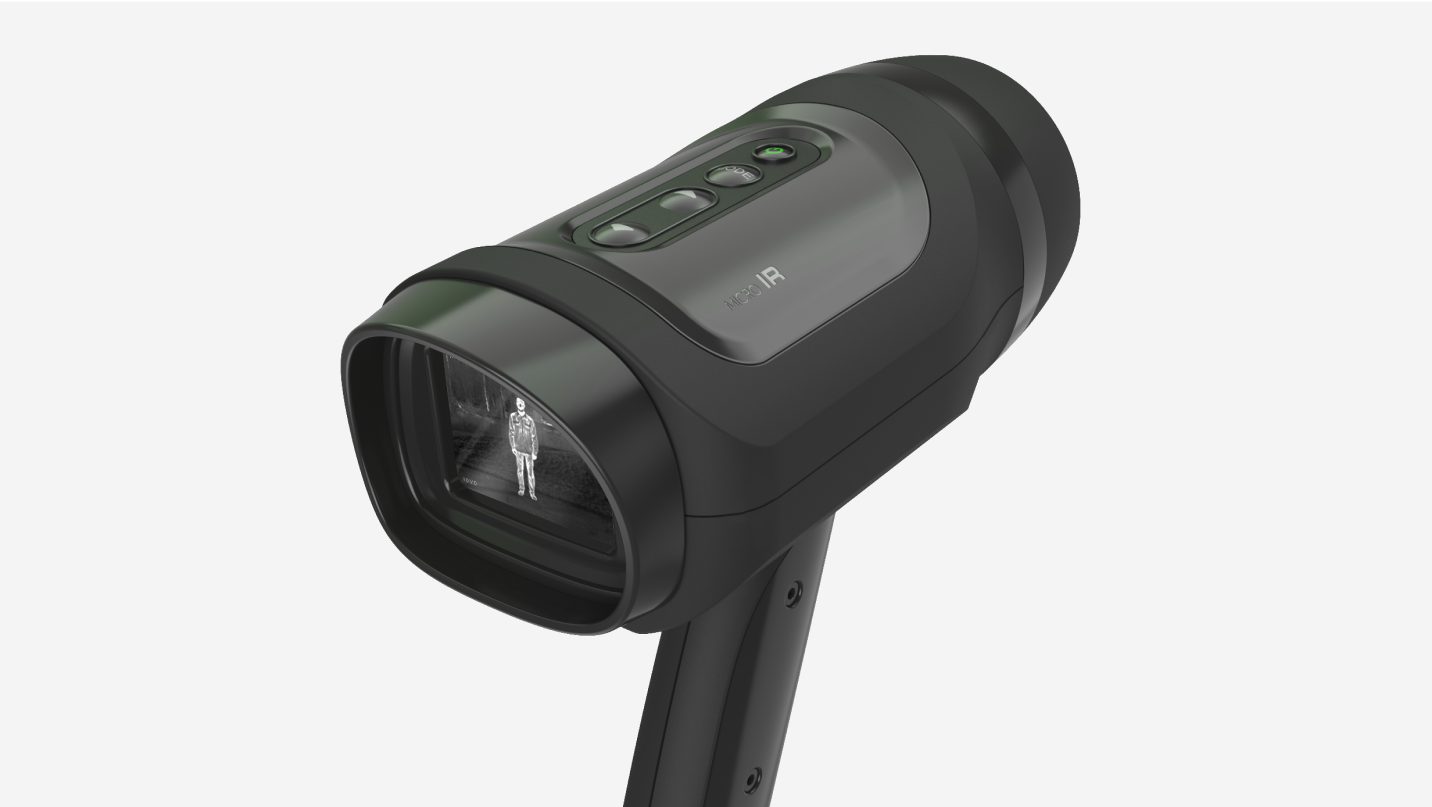

A handheld black thermal imaging device, crafted by a leading Product Design Firm, displays a human figure on its screen and features several buttons alongside a comfortable grip handle.
