Lab grade imaging, simplified.
Fluent cell imaging often required bulky, complex microscopes and extensive operator training. Thermo Fisher aimed to offer a productivity enhancing solution featuring automation, intuitive operation, and a sleek form that improves bench space efficiency without sacrificing imaging quality.
Research Insights & Discovery
Key Outputs

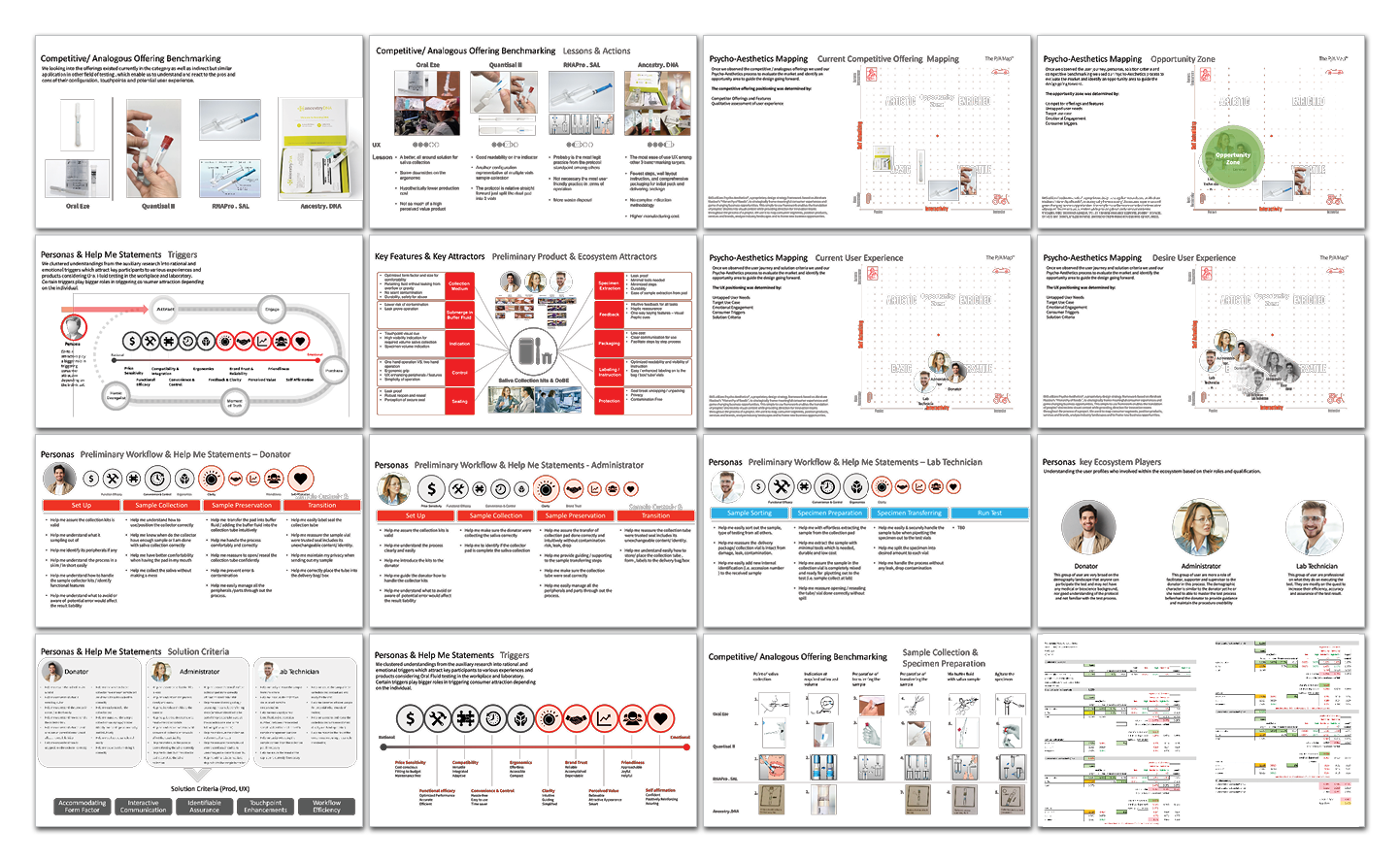

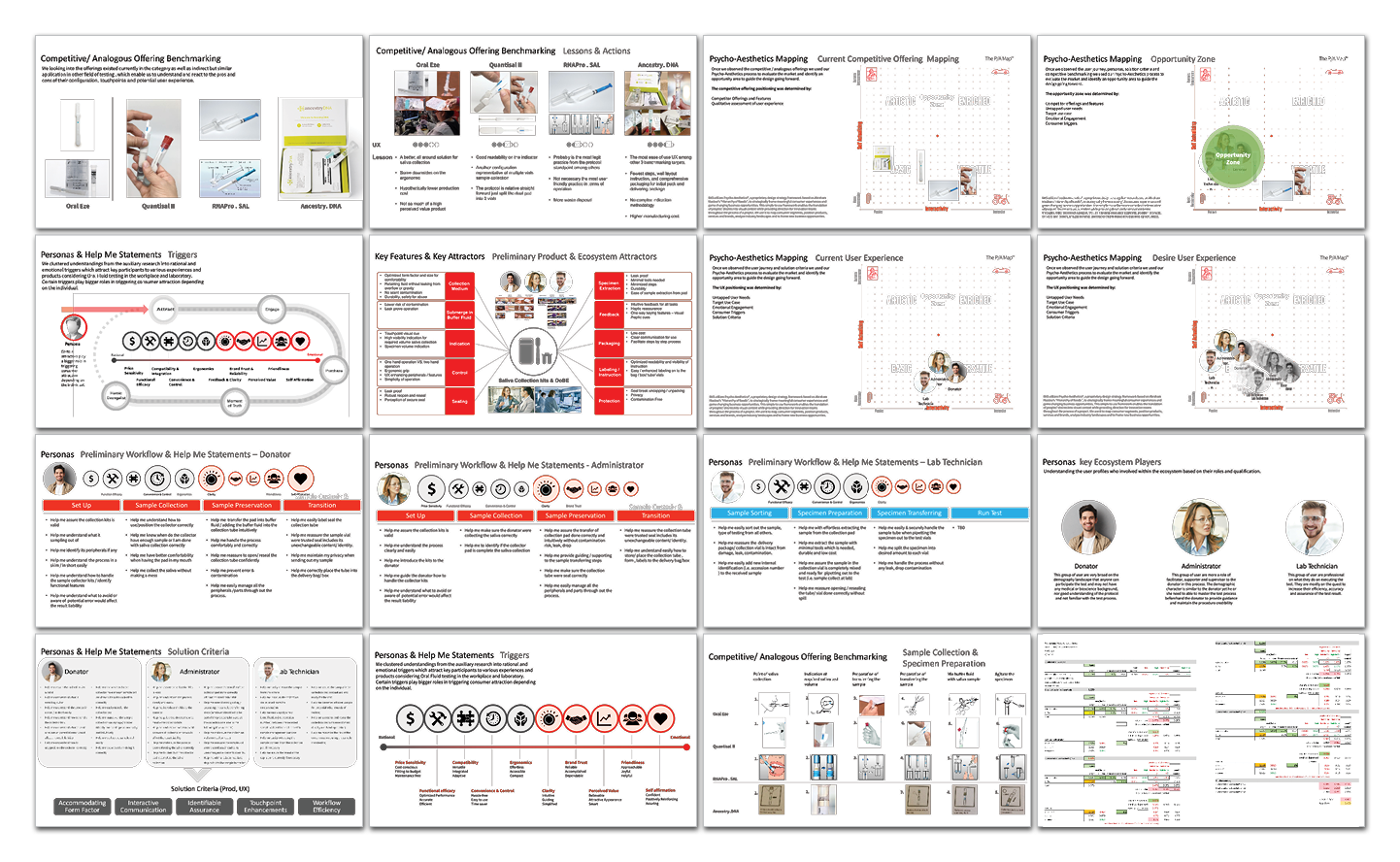

- User Personas

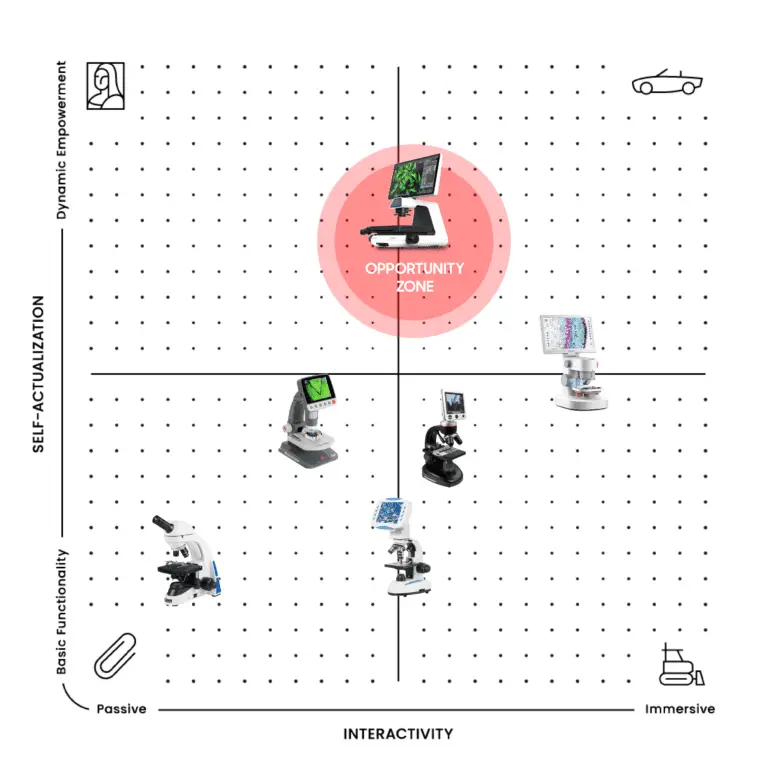

- Psycho-Aesthetics® 2.0 Map
- Benchmarking
- Opportunity Areas & Design Criteria
- How We Used Psycho-Aesthetics™ to Identify Unique Opportunities in the Project.
We conducted on site lab field studies to track preferences, pain points, and divergent workflows. Technicians expressed frustration with manual focus, limited lab space, and inconsistent imaging. RKS used our Psycho‑Aesthetics® model to define a system experience that balanced confidence, ease, and spatial harmony.
How We Used Psycho-Aesthetics™ to Identify Unique Opportunities in the Project.
Using our proprietary Psycho-Aesthetics® 2.0 framework, we conducted in-depth interviews and ethnographic observation in diverse lab settings. We identified key emotional and usability pain points, such as intimidation with complex interfaces, workspace clutter, and trust in precision. These insights guided both the form and interface strategy, ensuring approachability and confidence in operation.

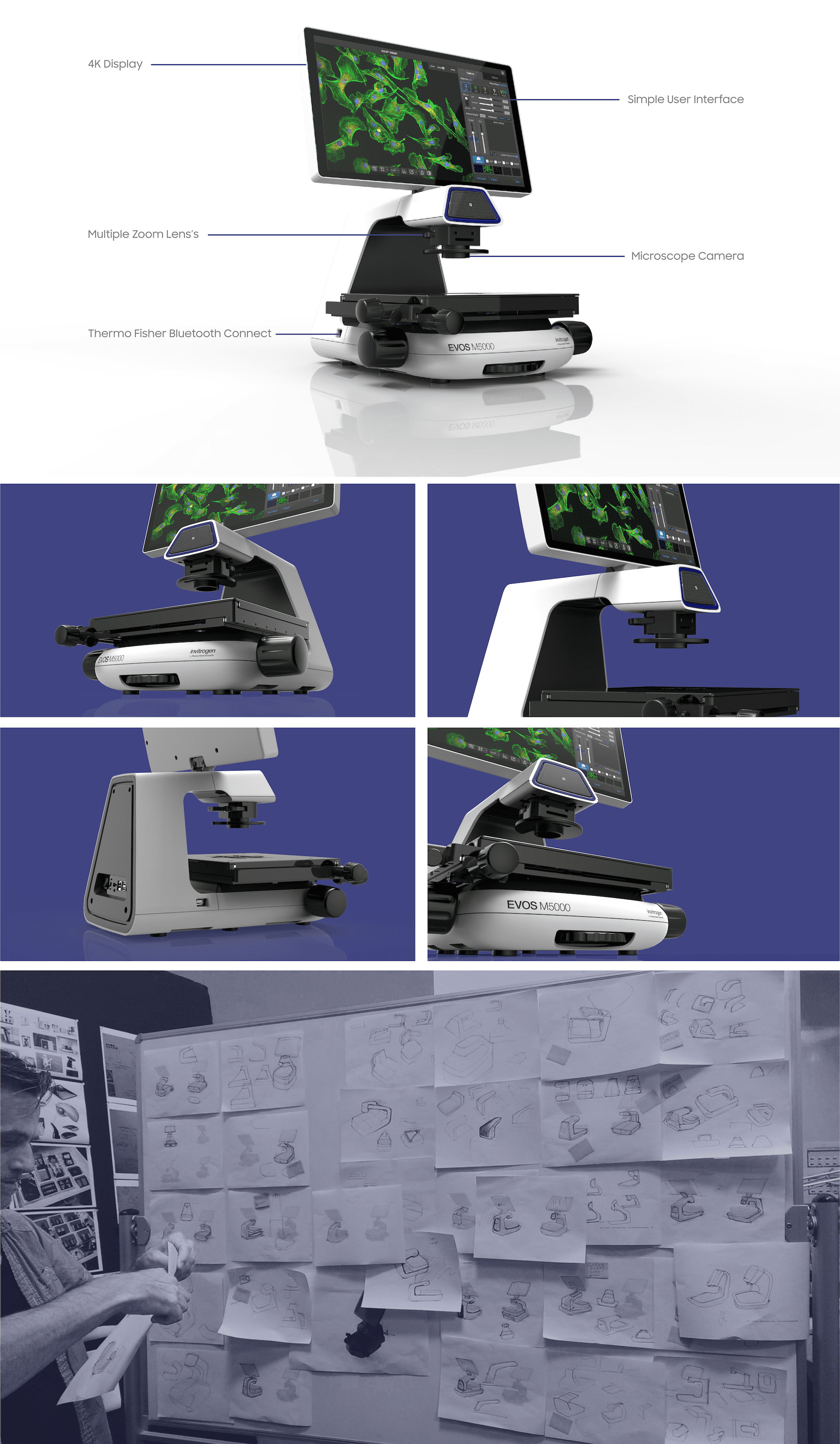

Industrial Design Concept Development
Key Outputs

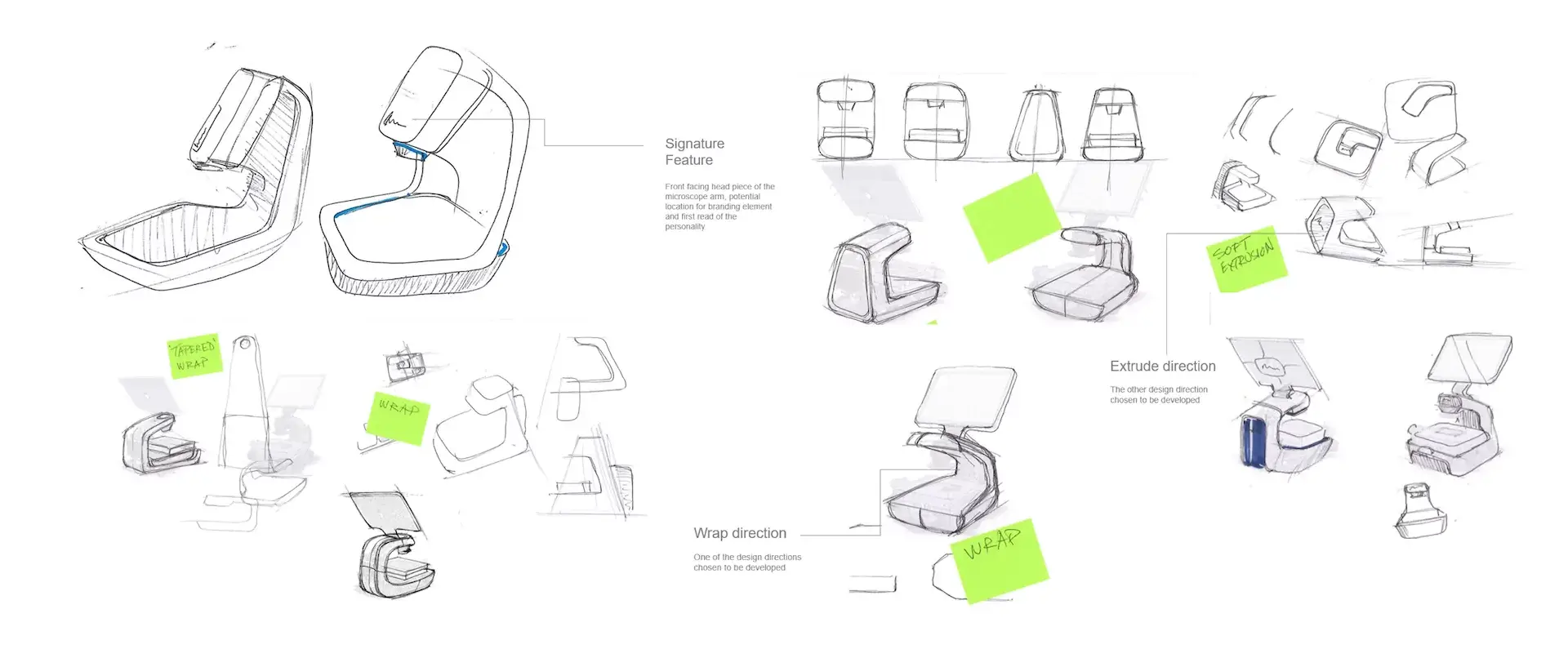

- CAD iterations optimizing volume, airflow, and user reach
- Functional mock ups highlighting sample tray insertion and calibration lids
- DFM guidelines ensuring serviceability and kit consistency

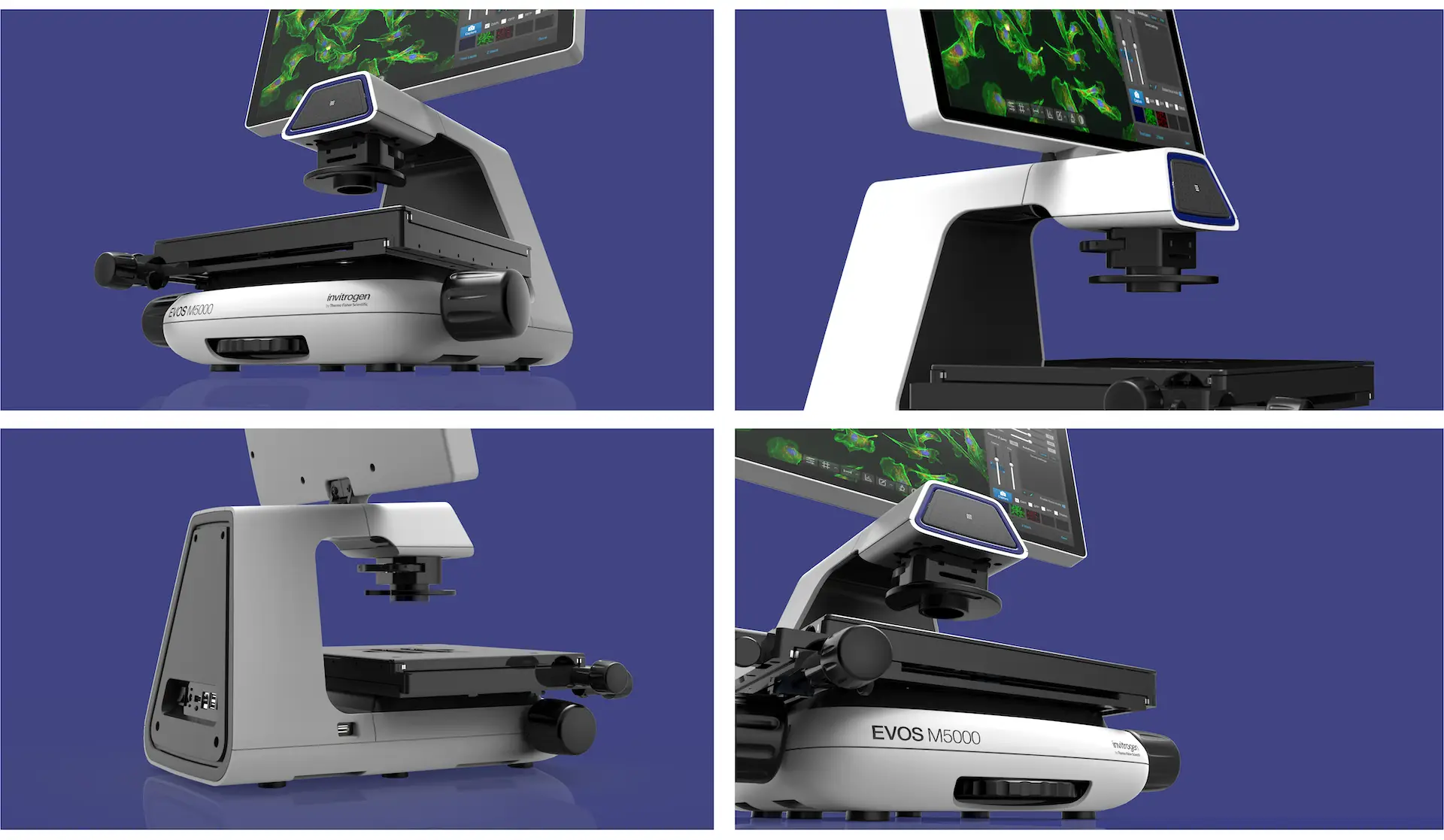

RKS designed a streamlined chassis, compact enough to fit on busy lab benches yet roomy enough to house motorized optics and filters. Clear access hatches, self calibrating trays, and integrated lighting zones were designed for visibility and intuitiveness. Attention to detail is evident in every aspect of the design, from the carefully selected materials to the intuitive interface.
Engineering Validation
Key Outputs
- Prototypes with precision sample trays, filter wheels, and autofocus
- Service documentation, materials specification, and calibration protocols
- Thermal and component tests validating uptime and imaging fidelity

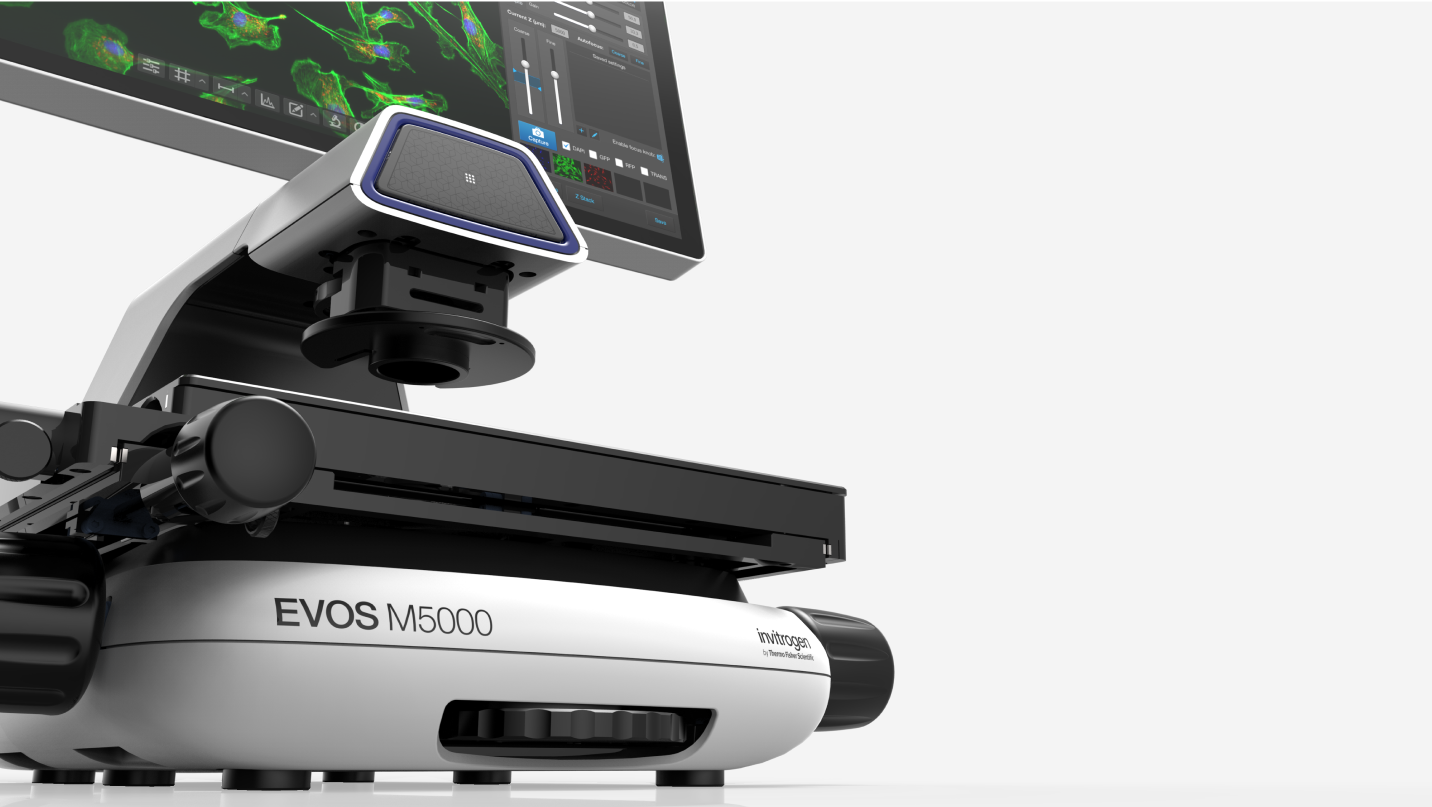

We coordinated closely with Thermo Fisher engineers to integrate optics, motorized stage mechanisms, and computational modules. RKS ensured proper alignment, thermal performance, and structural stability for reproducible imaging. From its easy self installation to advanced color options and Thermo Fisher Connect™ connectivity, the EVOS M5000 microscope is designed for optimal performance and convenience.
Key Outcomes and Results
Key Accomplishments
- EVOS M5000 is actively sold and integrated worldwide as part of Thermo Fisher’s benchtop cell imaging portfolio.
- Lab technicians report significant gains in workflow speed
- Product harmonizes design language across the EVOS line, strengthening brand clarity and customer trust
The result of RKS Design’s collaboration on this project is an exceptional laboratory microscope that meets the demands of modern research. Its biosafety cabinet compatibility and the integration of the EVOS Onstage Incubator allow for live cell analysis with precise control over temperature, humidity, and gases.
One of the standout features of the EVOS M5000 microscope is its advanced color options, which enable users to capture user defined four color fluorescence, transmitted light, and color images. The EVOS M5000 Imaging System represents the perfect blend of industrial design, functionality, and innovation, providing researchers with a versatile and user friendly laboratory microscope.
